Chlorine generator HS pre-assembled in box with pH and RX control - pool up to 100m³

This box measuring 40x60x45 cm contains an automatic water treatment system with a high-quality HS salt electrolysor and pH neutraliser, at an unbeatable price.
To enable electrolysis, you must add 4 grams of salt per litre of water. The salt is converted into chlorine, which after disinfection is converted back into salt.

With the built-in WiFiPOOL controller, you can control and monitor the system via your mobile phone, wherever you are.

Capacity

Two versions are available

• 16 g/hour disinfection: Pools up to 80 m³ *
• 20 g/hour disinfection: Pools up to 100 m³ *

* The definition of m³ for pool usability varies depending on use and layout, and is 3 to 5 times the disinfection capacity (g/hour) of the electrolysis unit.

This kit includes a “flow switch” that stops pH dosing when there is no water flow.

Level detection stops pH dosing when the acid container is empty. Once water flows through the measuring/dosing nipple, the device measures pH and redox (chlorine) and automatically adjusts the pool parameters.

Since our recent upgrade in 2025, the WiFiPOOL controller works both via cable and WiFi.
The core of this controller is the Gen 2 chipset, enabling you to control an entire pool (see hardware below).
The biggest advantage of this innovation is that the automation, whether factory preset or custom programmed, is stored on the chip.
If the WiFi connection drops, your water treatment continues based on parameters stored on the chip.

An Ethernet cable connection is optionally available to guarantee connectivity, but the greatest benefit is that initial device configuration is much faster and easier.
Please contact us for more information about compatibility and new working methods.

Hardware

The box is designed for DIY pool owners with above-ground pools. Since all components are already wired and pipes glued, the set is very easy to install: connect the inlet and outlet to the 50 mm pipe or the supplied connectors for Intex/Bestway with 32, 38 mm or 2 inch thread.
The box contains a drip tray for a 10 litre pH tank (not included) and mounting materials for soil, ground or lawn.

Software

Connecting and configuring the WiFi devices via the WiFiPOOL app is very simple and efficient. The full automation strategy is automatically transferred to your phone upon installation.

The device can be expanded with

• 3 temperature measurements,
• 2 additional level measurements,
• 1 pressure measurement,
• 1 conductivity measurement (salt concentration).

Besides pH control and salt electrolysis, two additional devices can be connected to the control box.

• Thanks to careful salt electrolysis treatment, your pool contains significantly fewer irritating substances and chlorine odours.
• Softer on sensitive skin.
• The pool water is kept in optimal condition 24/7 and is 100% germ-free.
• No storage of hazardous chemicals that small children could come into contact with. In other words, very safe.
• Regular topping up as with traditional chlorine treatments is unnecessary. The salt content remains virtually constant.
• No “mini sea” in your garden, only 0.4% salt content compared to 3.5% in the ocean.

If used correctly, you can trust in pure and healthy water 100%. Thanks to electrolysis, you also experience far fewer irritating substances and less pool odour.

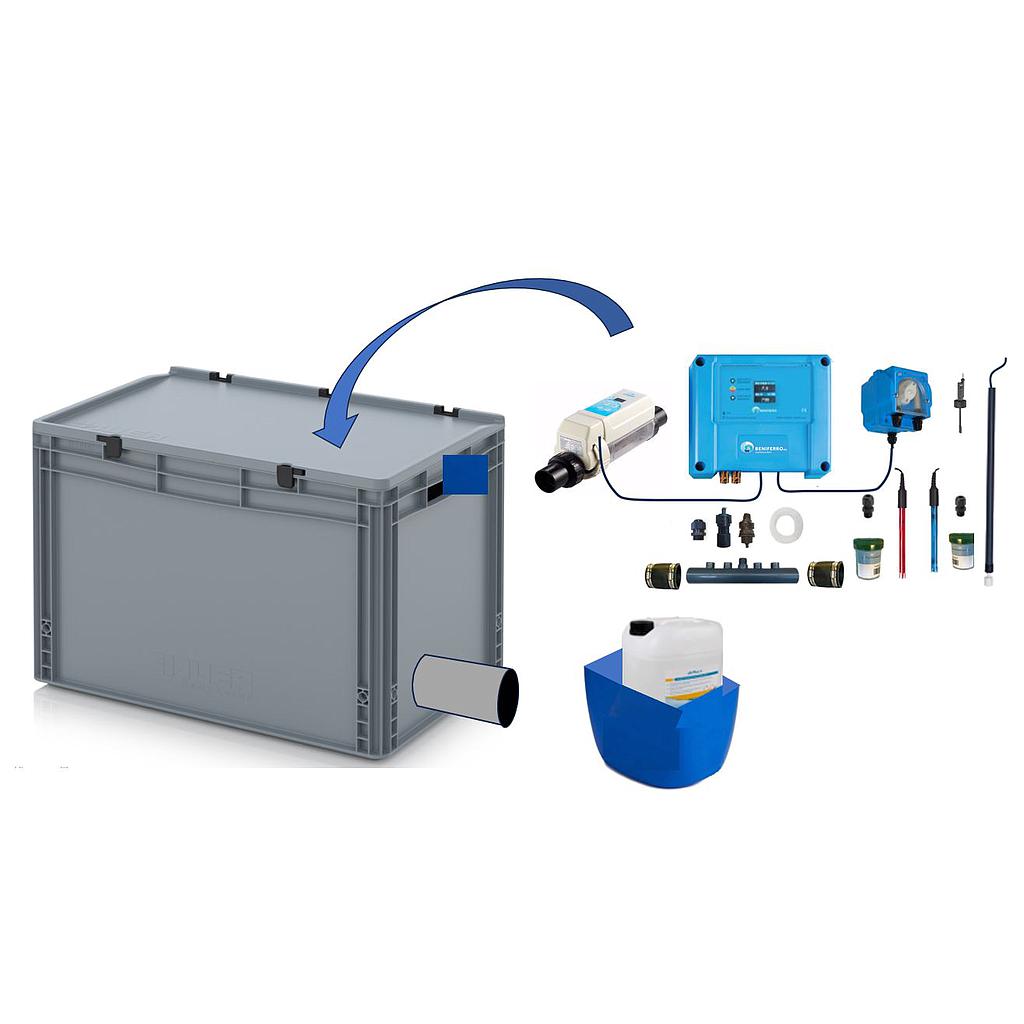

• Installation box with waterproof lid 40x60x45 cm,
• Drip tray for 10 litre pH container,
• WiFiPOOL Connect-pro control box with 16 g/h salt electrolysis with flow and level detection,
• Peristaltic pH pump with all connections,
• Flow switch,
• Grounding,
• pH and ORP (chlorine) probes and calibration fluids,
• 2 rubber connections, diameter 50 mm.

We refer you to distributors of our main supplier for the purchase of suitable quality salt at BENIFERRO.EU
