Salt electrolysis SR assembled in a box with pH, ​​RX, and flow control - pool up to 150m³ - Wi-Fi | Display - Level control optional

This 40x60x45 cm box contains an automatic water treatment system with a high-quality new generation Titanium SR salt electrolyser and pH neutraliser, at an unbeatable price.

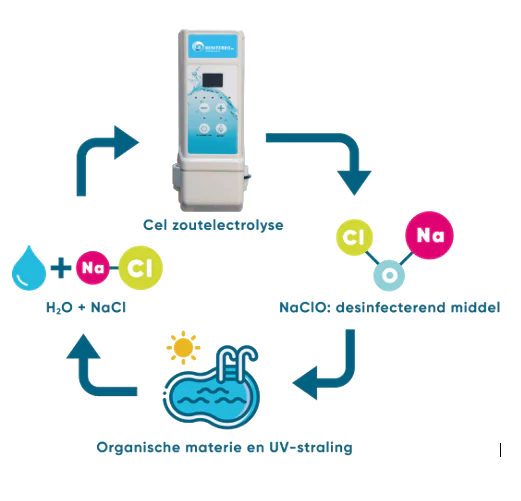

To make the electrolysis work, add 4 grams of salt per litre of water. The salt is converted to chlorine, which after disinfection is converted back to salt.

With the built-in WiFiPOOL controller, you can control and monitor the system operation via your mobile phone, wherever you are.
Without WiFiPOOL is also possible: Our EPROM pre-programmed Display version includes the same function, but without remote control and alarming.

The menu and calibration, activated by pressing a "calibration" button, are extremely simple in both setups.

There are 5 versions available

• Disinfection with 5 g/h: pools up to 25 m³ *
• Disinfection with 10 g/h: pools up to 50 m³ *
• Disinfection with 15 g/h: pools up to 75 m³ *
• Disinfection with 20 g/h: pools up to 100 m³ *
• Disinfection with 30 g/h: pools up to 150 m³ *

* The definition of m³ for pool usability varies depending on usage and pool installation and lies between 3 and 5 times the disinfection capacity (g/h) of the electrolysis

There are 2 options available

• via our WiFiPOOL controller and corresponding iOS or Android app
• via an easy-to-use LCD screen, the Display version

The Pool DUO comes with a "flow switch" that stops product dosing in the absence of water flow. Level detection stops pH neutraliser dosing when the neutralisation tank is empty.

As soon as water passes through the measurement/dosing nipple, the equipment measures pH and Redox (chlorine) and automatically adjusts pool values. With correct use, you are 100% sure of clear and healthy water.

Since our recent 2025 upgrade, the WIFIPOOL controller works via cable and wifi.
The basis of this controller is the Gen 2 chipset, with which you can control an entire pool (see hardware below).

The biggest advantage of this innovation is that the automation, whether factory-set or custom-made, is now also stored in the chip.
If the wifi connection fails, your water treatment continues according to the chip parameters.

The ethernet cable connection is optionally available to guarantee the connection, but the biggest advantage is that the first device configuration is much faster and simpler.

Get in touch for more information on compatibility and new working methods.

Hardware

The box is designed for DIY enthusiasts with an above-ground pool. Since all parts are already wired and pipes glued, the set is very easy to install: connect inlet and outlet to the 50 mm pipe or to the supplied connections for Intex/Bestway with 32, 38 mm or 2 inch thread.
The box contains a catch tray for a 10 litre pH tank (not included) and mounting materials for ground, soil or lawn.

Software

Connecting and configuring wifi devices via the WIFIPOOL app is extremely simple and efficient. The complete automation strategy is automatically transferred to the phone during installation.

The device is expandable with

• 3 temperature measurements,
• 2 additional level measurements,
• 1 pressure measurement,
• 1 conductivity measurement (salt content measurement).

In addition to pH control and salt electrolysis, 2 additional devices can be connected to the control cabinet.

• Thanks to the careful saltwater electrolysis treatment, your pool contains significantly fewer irritating substances and chlorine odours.
• Gentler on sensitive skin.
• Pool water is in optimal condition 24 hours a day and 100% germ-free.
• No dangerous chemicals are stored that small children could come into contact with. Unintended contact. Super safe, meaning:
• No regular refilling needed as with traditional chlorine treatments. Salt content remains virtually constant.
• No "mini-sea" in the garden, only 0.4% salt content compared to 3.5% in the ocean.

With correct use, you can 100% rely on clean and healthy water. Thanks to electrolysis, you also have much less trouble with irritants and less pool smell.

2026 introduction of the advanced SR salt chlorinator, designed for spas from 5 m³ to pools of 150 m³.
This new development with increased efficiency and durability replaces our old HS salt electrolysis range.

More details on the upgrade here.

• Installation box with watertight lid 40x60x45cm,
• Drip tray for 10 litre pH container,
• WIFIPOOL or Display Connect-PRO control cabinet as chosen
• LASWIM SR Titanium salt electrolysis units according to selected capacity
• flow and level detection,
• Peristaltic pH pump with all connections,
• Flow switch,
• Earthing,
• pH and ORP (chlorine) probes and calibration fluids,
• 2 rubber connections, diameter 50 mm.

For purchase of suitable quality salt, we refer to distributors of our main supplier BENIFERRO.EU
