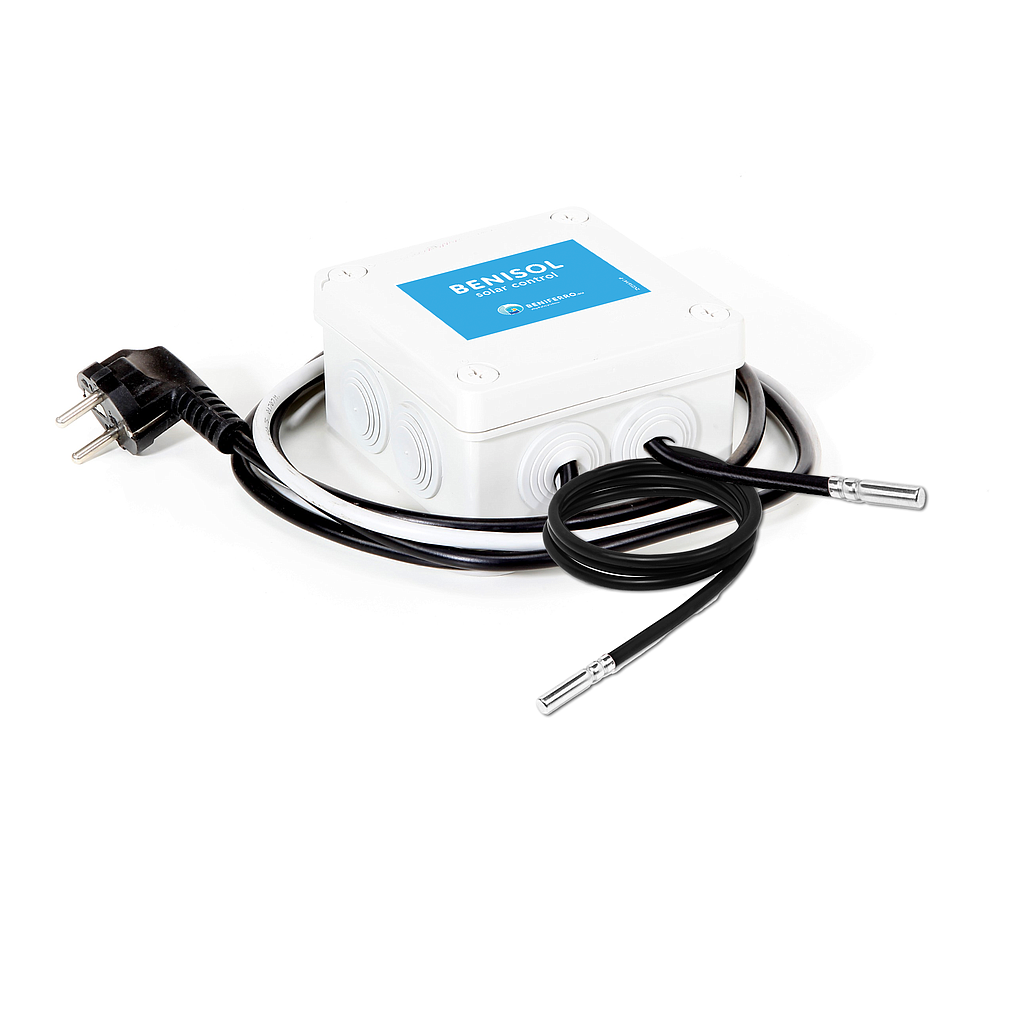

Benisol Temperature controller plug & play incl. temperature sensors, temperature inert and tapping saddle

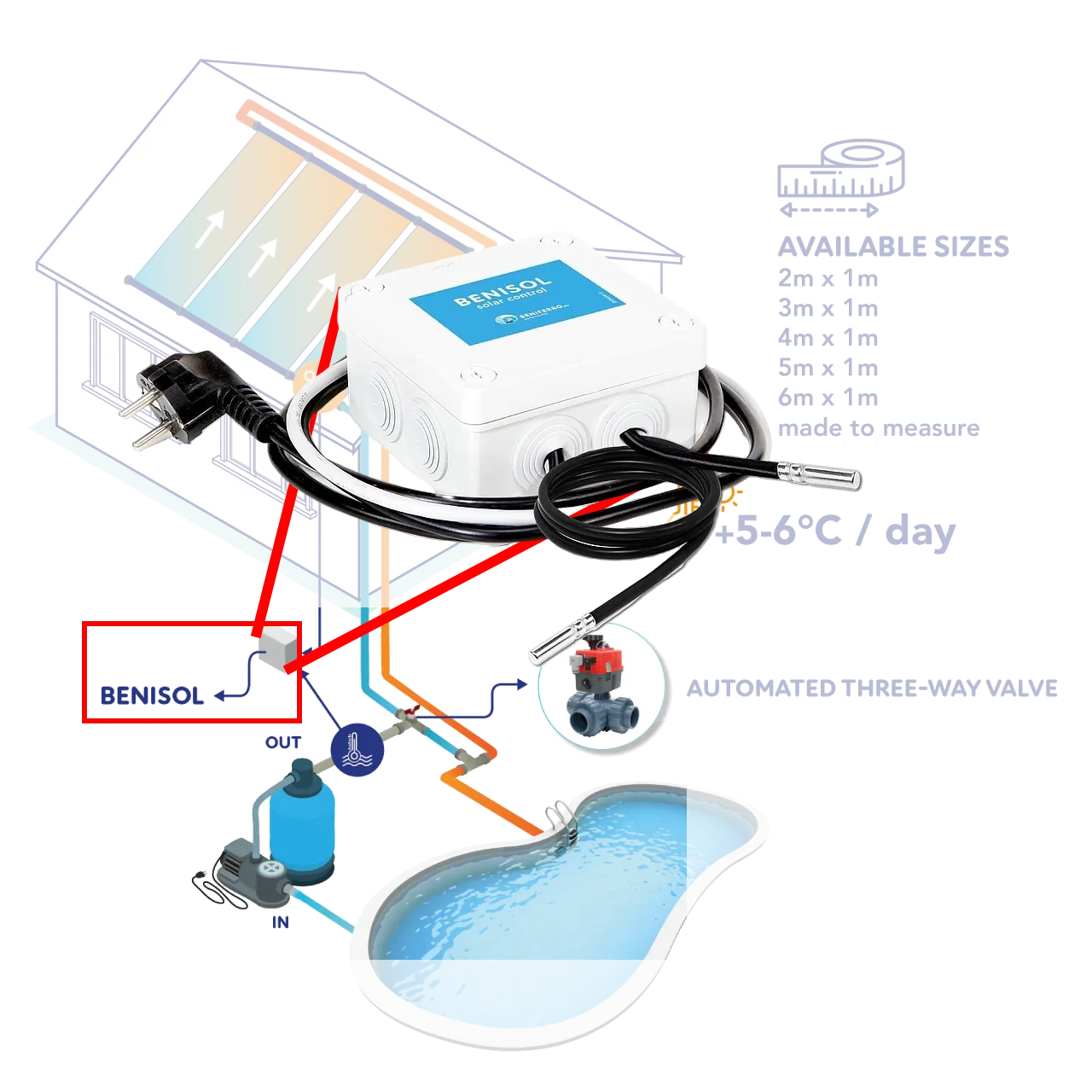

EPDM solar heating is the most economical and ecological way to heat a pool.The heating is often controlled by a motorised three-way valve. The motorised three-way valve can be connected to a 'Benisol' box with two thermocouples that measure the roof temperature and the water temperature. As the sun heats the sensors to a 4°C higher pool water temperature, the valve will turn to the "heat" position and vice versa. When the water temperature reaches 32°C, the valve steers water to the pool and not to the solar collector. The values 4°C and 32°C are adjustable.The Benisol box contains all the necessary installation accessories, such as a 50 mm tapping saddle and a sleeve for the temperature probe. The temperature probes are 1 m (water) and 10 m (roof) long.

The three-way valve is available separately.

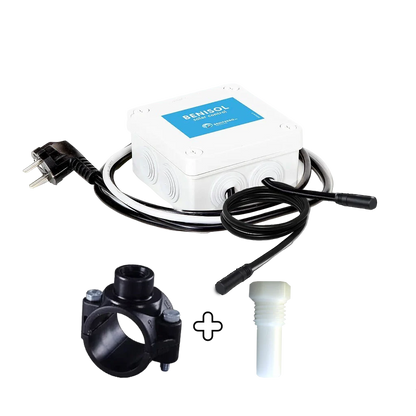

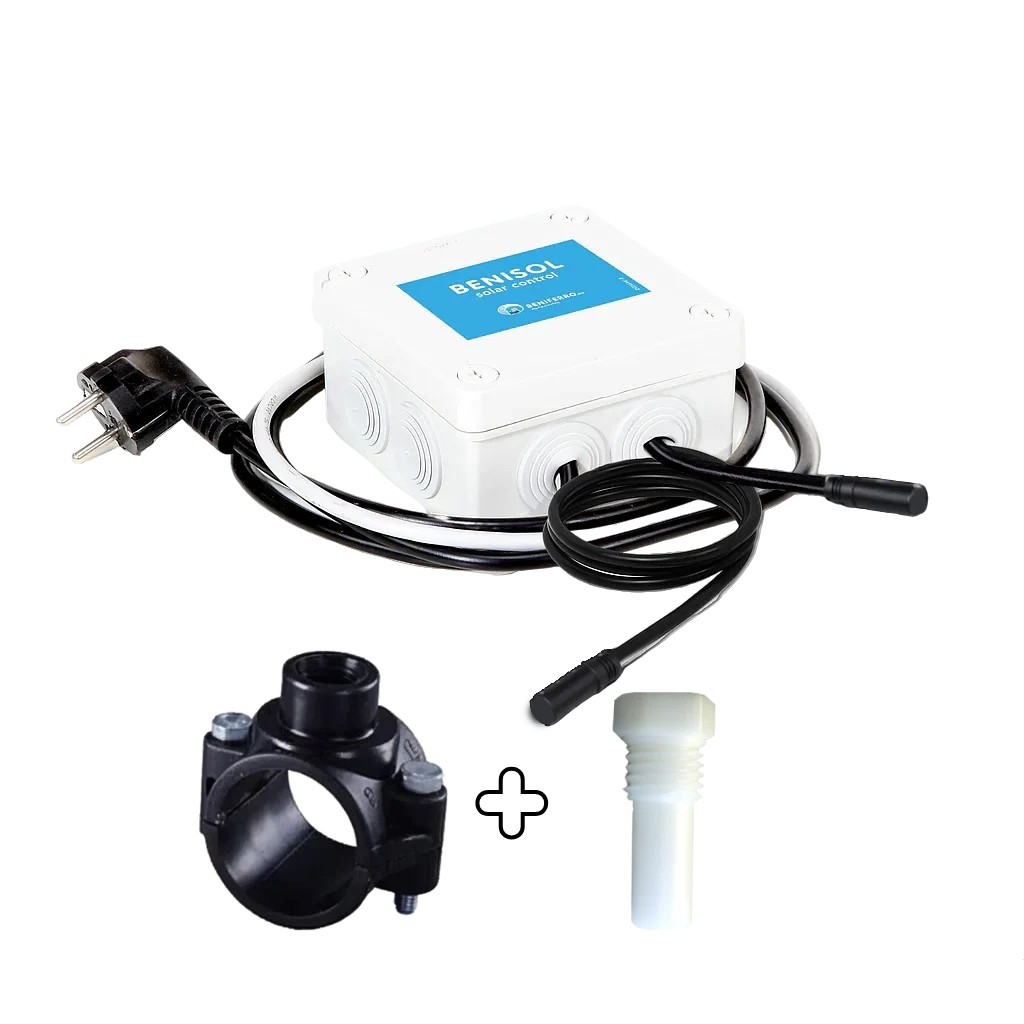

Contents of the box: Benisol temperature control box, water temperature probe (1 m) (with 50 mm tapping saddle and probe gland), roof temperature probe (10 m) and 230 V plug. - Quick start guide – YouTube – Brochures – Spare parts
