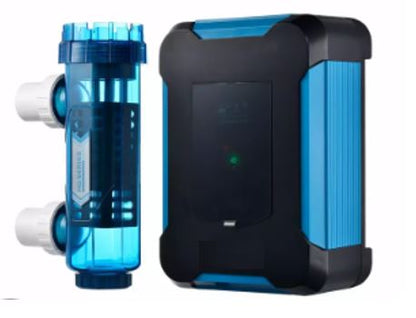

Salt electrolysis SQ without pH/RX control - without accessories - pool up to 210m³

The best price for a high-capacity electrolysis device

Product type: Salt chlorine generator
Material: Plastic,
Weight: Approximately 9950 g / 351 oz
Total power (maximum): 250 W
Operating voltage: AC 220 ~ 240 V / 50 Hz
Product length: Approximately 365 mm / 14.4 inches
Product width: Approximately 260 mm / 10.2 inches
Product height: Approximately 140 mm / 5.5 inches
Capacity: 42 g Chlorine/hour

Thanks to integrated microcomputer technology, all processes are controlled by an electronic system. No additional equipment is required.

Suitable for cleaning pools up to 210 cubic metres*, integrated circulation control equipment.

* The definition of m³ for pool usability varies depending on the pool use and layout, and ranges between 3 and 5 times the disinfection capacity (g/hour) of the electrolysis device.

Installation instructions for the salt chlorine generator:

1. The generator must be installed on the last equipment line before it returns to the pool after filtration in the water purification process, on the horizontal or vertical side of the bypass pipe. A regulating valve must be installed on the main line to ensure sufficient water flow through the generator.

2. The salt chlorine machine’s controller must be installed in a ventilated dry location. It must be protected from rain and direct sunlight as much as possible, to extend the device's lifespan. The controller must be mounted on a panel or wall at a height of 1.5 m above the floor. A minimum of 100 mm free space must be maintained on all four sides. The top-left of the controller is the outlet port for cooling, which must not be blocked by other equipment to maintain cooling efficiency. To facilitate permanent installation, the two mounting holes at the rear of the controller are first secured with two brass screws horizontally spaced 180 mm apart. Align the mounting holes with the screws and press firmly.

3. To connect the salt and chlorine generator controller to the generator, connect the two red and one black electrode from the controller to the two (+) terminals and one (-) terminal of the generator electrode, respectively. Then connect the signal wire. The connector (water level/temperature) allows the controller to connect to the generator. To control underwater lighting, connect the underwater power cable directly to the controller’s AC12V output; the waterproof connector under the controller supplies power to the circulation pump. Open the waterproof cover to use.

Tip: If the user has an independent underwater lighting and circulation control system, the underwater lighting and circulation pump do not need to be connected. As long as the generator circulates sufficient pool water, this does not affect normal operation of chlorine production and other functions of the salt chlorine controller.

Note: The controller’s power supply must be connected to a circuit with earth leakage protection (AC220~240V/50Hz, 10A) and leakage current must be less than 30 mA.

The SQ salt chlorinator improves your pool water quality using harmless table salt instead of harsh chemicals. It is reliable, low maintenance, and safer for your health. Easy programming and fully automatic operation ensure relaxing swimming.

• Removable titanium cells are easy to install, clean, and maintain.
• Alarm system: automatic protection of your system and pool in case of too high or too low salt levels.
• Protected against water flow interruption, which can damage the generator or cell.

• Thanks to careful salt electrolysis treatment, your pool contains significantly fewer irritating substances and chlorine odours.
• Softer on sensitive skin.
• The pool water is maintained in optimal condition 24/7 and is 100% germ-free.
• No storage of hazardous chemicals that could accidentally contact small children. Very safe, in other words.
• No frequent topping up as with traditional chlorine treatments. The salt content remains almost constant.
• No “mini sea” in your garden, only 0.4% salt content compared to 3.5% in the sea.

1 x Salt chlorine generator control unit
1 x Cable
1 x Salt chlorine generator
1 x Water inlet
1 x Water outlet
1 x Connection cable
1 x English manual

1. For installation, a qualified electrician must carefully read the relevant instructions in the manual, installation, and operating instructions.
2. The environment where the generator is installed must meet requirements.
3. Run and connect the power supply to the device following applicable national and local regulations.
4. Check that the input voltage of the working power supply meets the controller requirements and connect correctly if necessary.
5. Ensure the external control equipment's performance matches and is compatible with all controlled devices.
6. The controller should be installed on stable vertical surfaces with at least 10 mm clearance on all four sides for ventilation.
7. The environment must be free from chemical vapours and excessive heat; the maximum temperature should not exceed 50°C (110°F).
8. Install the controller as far as possible from sources of electrical noise.
9. In case of faulty operation or malfunction, contact the nearest authorised dealer or technical service department.
10. If accessories are damaged, purchase them preferably from the manufacturer or an authorised service centre/reseller.
