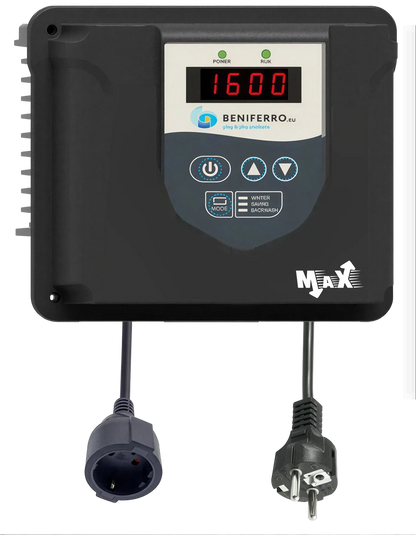

Frequency regulators IP20 230V - max. 1.12 kW (1.5 HP) pumps

Paid back within 1 year.

With a frequency controller, you can slow down the speed of the filter pump. This means lower energy consumption, while filtration and purification work better at lower flow rates. Full pump power is only needed for starting the pump, backwashing, and cleaning/suction!

Filter pumps are the largest energy consumers in the pool. With this controller, you can easily reduce consumption by 50%, and the frequency controller usually pays for itself within a year.

This "plug & play" controller requires no programming at all. Once plugged in, the pump runs at full speed (2900 rpm) for 1 minute, then switches to the last used setting.

To adjust the controller speed, press the "up" or "down" button.
The frequency controller itself cannot be programmed.

To set a time schedule, use a standard timer switch or a WiFiPOOL smart plug. With the latter, you can also immediately measure the power consumption of the filter pump.

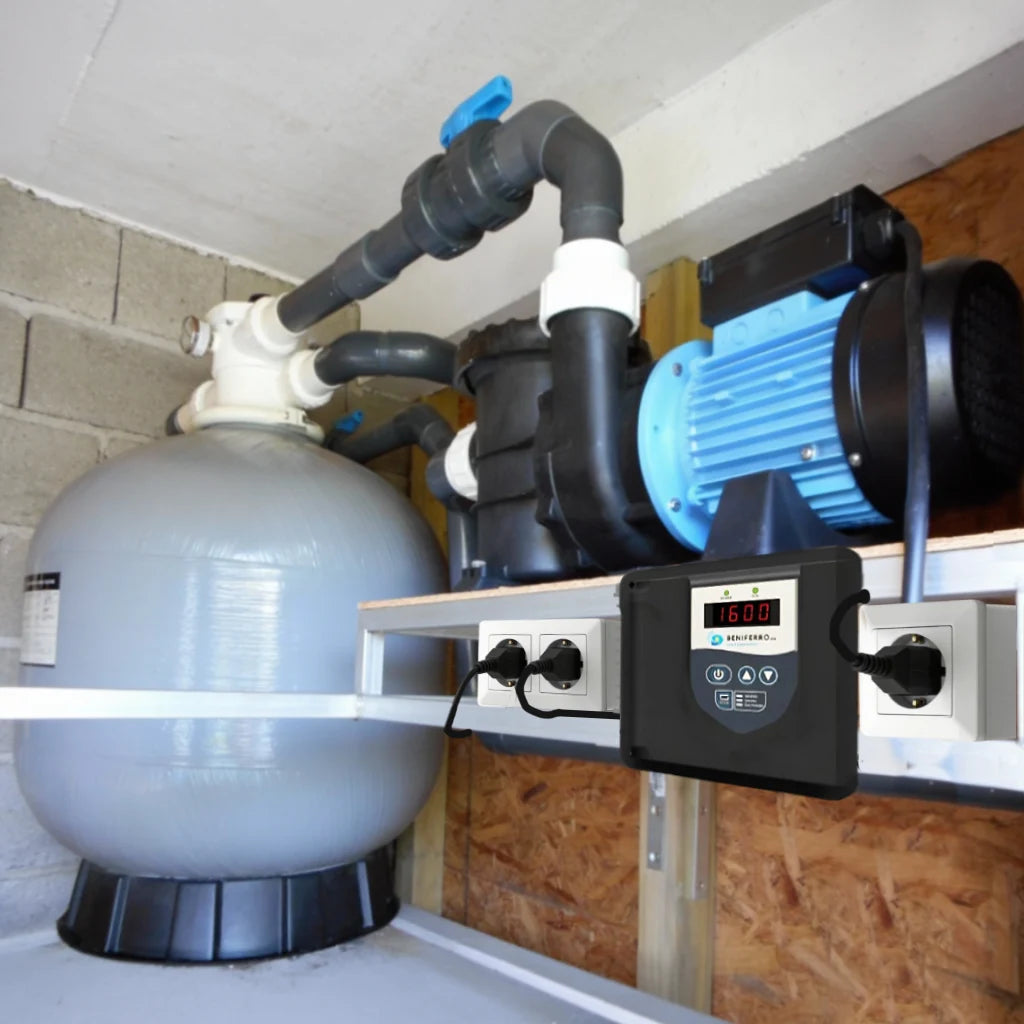

Installation is very straightforward: plug the frequency controller into the power outlet, then plug the filter pump into the controller.

This frequency controller is suitable for all pool filter pumps with a power up to 1.5 HP = 1.12 kW.

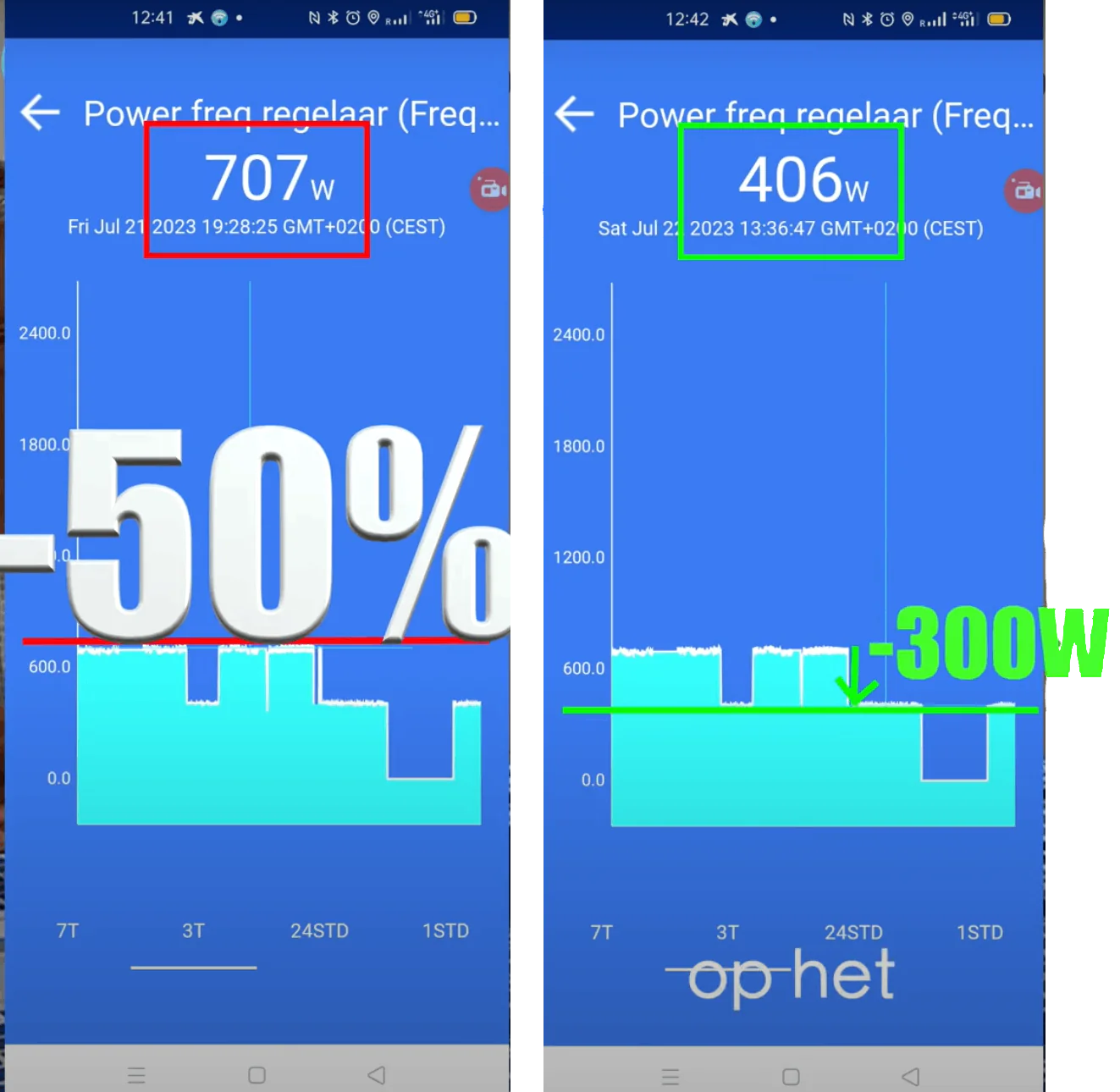

With this controller, you can easily reduce consumption by 50%, and the frequency control usually pays for itself within a year. You can control the filter pump's frequency with your mobile phone via Wi-Fi and view the power consumption on your phone screen.

Note: Only available when purchasing the WiFiPOOL Smart Plug version.

Because programming is done via Wi-Fi, it is entirely possible to increase the frequency while, for example, chlorine is being added to the pool to improve the mixing of chemicals and prevent overdosing.
The 0-10 volt control module – which sends instructions from the mobile phone to the frequency controller – also includes connections for flow measurement and two inputs for our temperature sensors.

Never connect products other than a 230 V filtration pump to the frequency controller.

• Frequency controller with European male and female plugs (length 1 m) for pool filter pumps up to 1.5 kW (2 HP),
• Wall mounting bracket
• Manual

Not included: WiFiPOOL Smart Plug or plug with timer switch.
