The WiFi Salt Electrolysis FES is used to automatically produce chlorine that ensures the disinfection of your pool water. This means that you do not have to store hazardous chemicals and do not have to manually add chlorine to the pool.

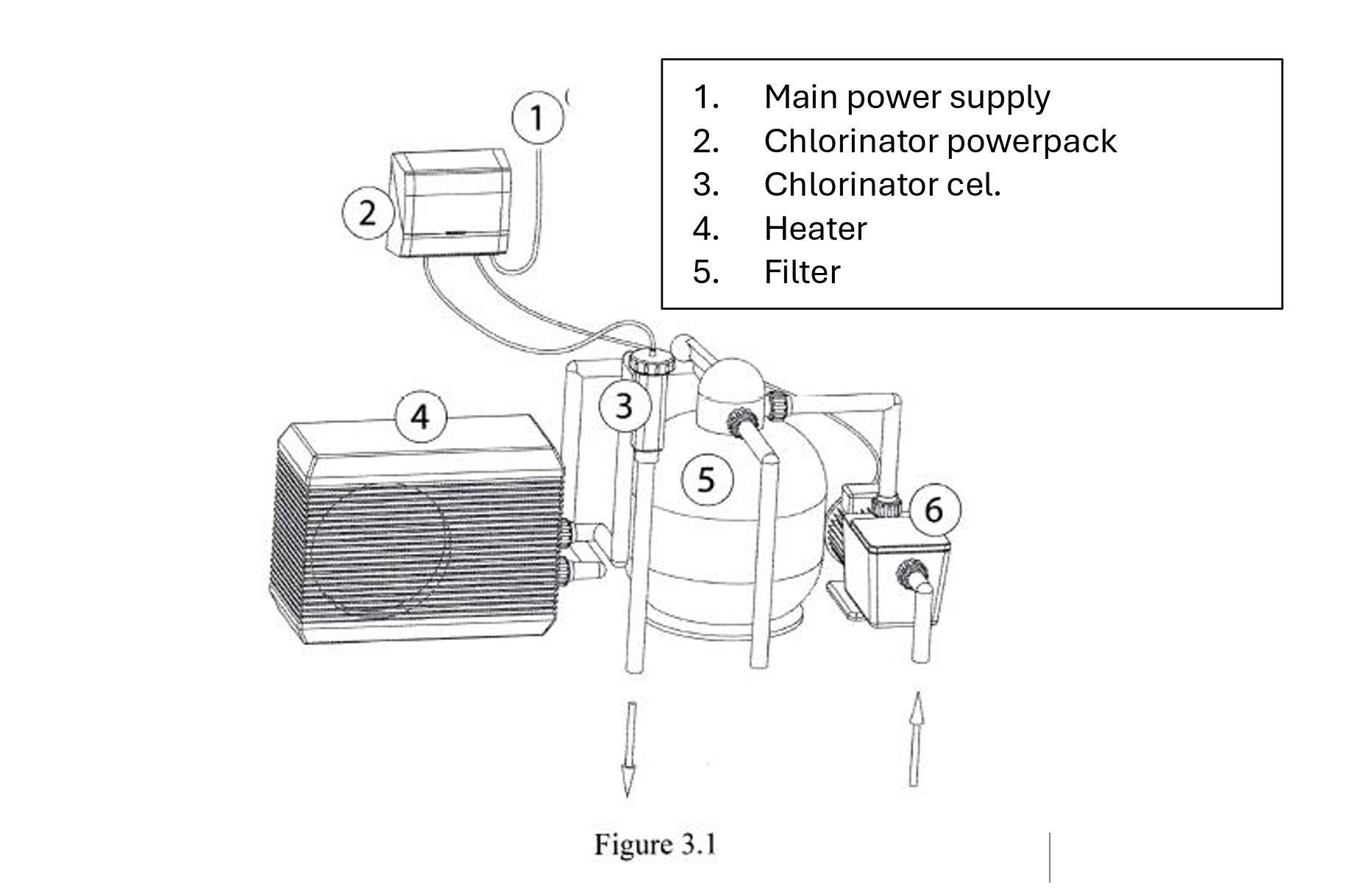

Installation

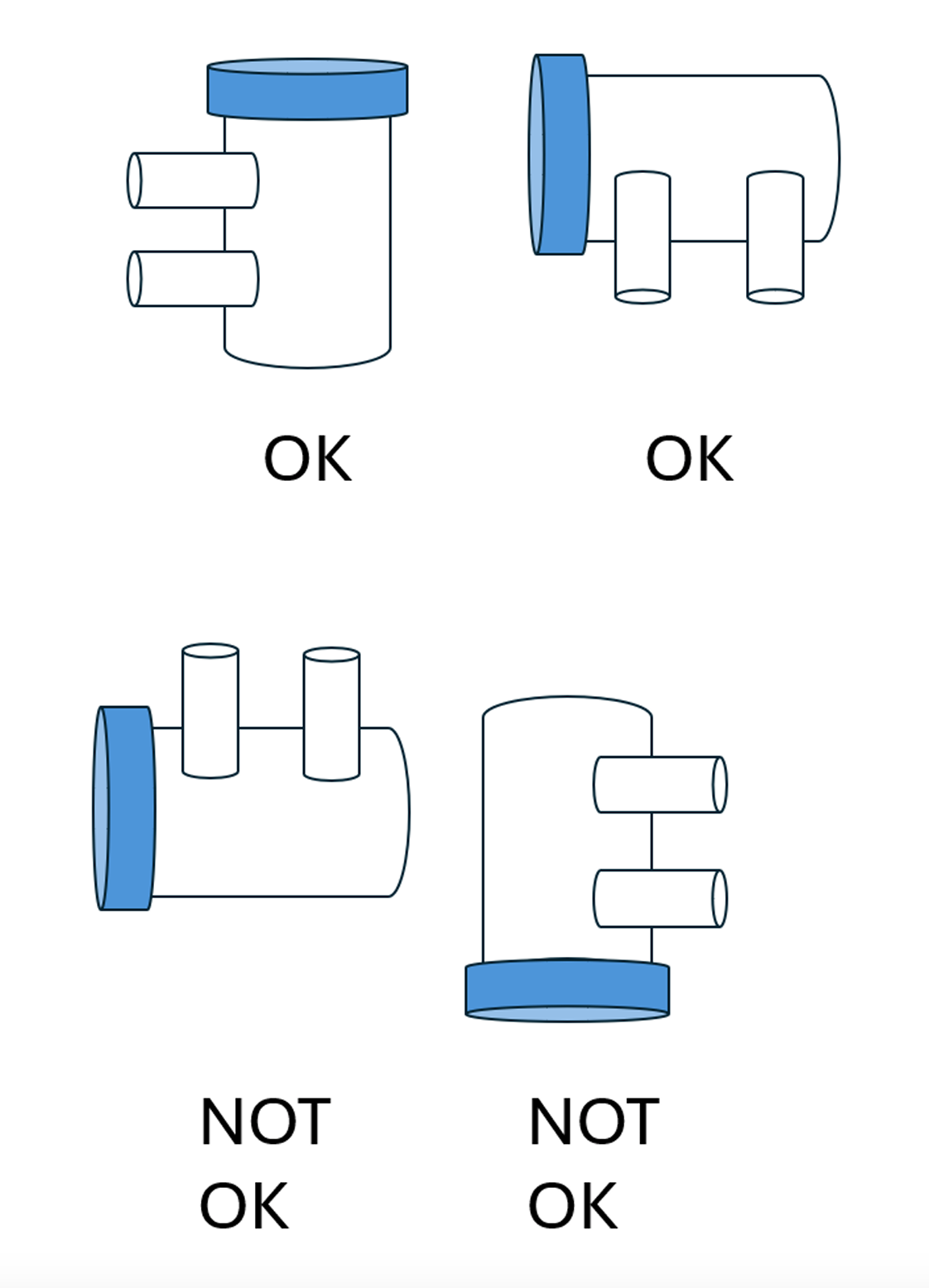

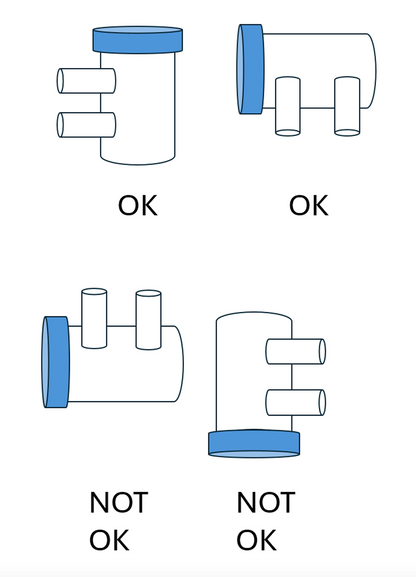

It is advised to place the electrolysis cell at a distance of less than 1.5 metres from the power supply box, measured from the length of the cable connecting the cell to the power box. The cell should be installed in such a way that gas can accumulate in the cell. In this way, the cell will safely enter standby mode if necessary (e.g., in the event of an interruption of water flow). To function effectively, the flow/gas sensor (in the lid) must always be installed above the cell inlet and outlet. The direction of flow in the cell itself is not important.
Grounding your installation
The production of chlorine by electrolysis, generated by a low electrical voltage in the cell and therefore in the water flowing through it, can cause leakage currents (completely harmless to users), but which in the medium term can cause damage or corrosion on metal parts of your installation (stainless steel ladders, or others). To avoid this phenomenon, it is essential to ground your water circuit by installing a grounding sleeve on your circuit.

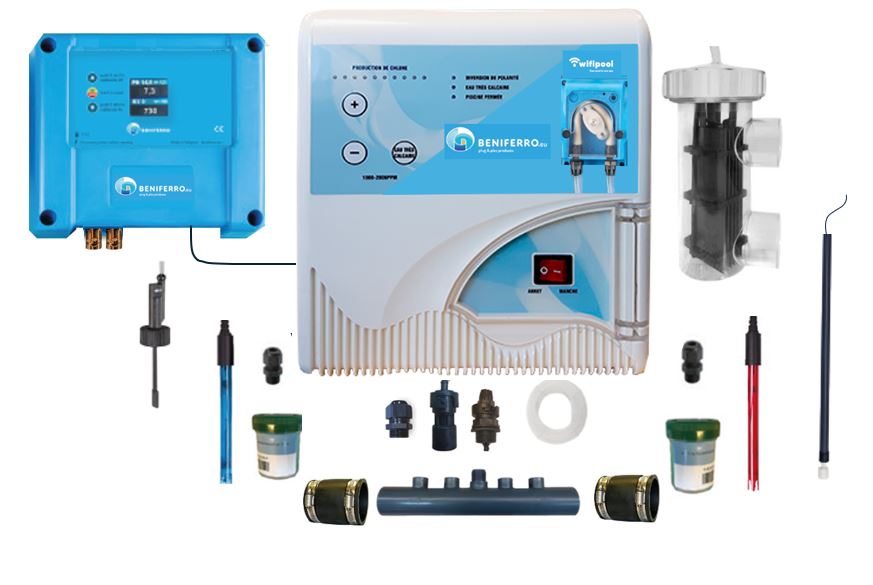

Components
1. Control cabinet 2. Cell 3. Cell casing 4. O-ring 5. Lid 6. Reducers, from 60 mm to 50 mm (Europe) 7. Closing connector for pool hatches 8. pH pump
