SR Salt electrolysis DIY kit with pH, ​​RX, and flow control - pool up to 150m³ - Wi-Fi | Display - Level control optional

This self-build kit contains an automatic water treatment device with Titanium SR (high salt) salt electrolysis and pH neutraliser, high quality and at an unbeatable price.
To make the electrolysis work, add 4 g of salt per litre of water. The salt will be converted to chlorine, which – after disinfection – will be converted back to salt.

The kit is developed for "DIY" pool owners. Since all components are already electrically wired, the set is very easy to install. Connect the inlet and outlet with rubber sleeves to the 50mm pipe (see diagram in product images)
For connection to 32 or 38 mm Intex | Bestway or 2 inch thread, contact us via chat or at info@pool-automation.co.uk

The menu and calibration, activated by pressing the "calibration" button, are extremely simple.

There are 5 versions available

• Disinfection at 5 g/h: pools up to 25 m³ *
• Disinfection at 10 g/h: pools up to 50 m³ *
• Disinfection at 15 g/h: pools up to 75 m³ *
• Disinfection at 20 g/h: pools up to 100 m³ *
• Disinfection at 30 g/h: pools up to 150 m³ *

* The definition of m³ for pool usability varies depending on usage and installation and lies between 3 and 5 times the disinfection capacity (g/h) of the electrolysis

There are 2 options available

• via our WiFiPOOL controller and downloadable iOS or Android app
• via an easy-to-use LCD screen, Display version

This self-build kit contains a "flow switch" that stops pH dosing in the absence of water flow. Level detection stops pH dosing when the acid tank is empty.

As soon as water passes through the measurement/dosing nipple, the equipment measures pH and Redox (chlorine) and automatically adjusts pool values. With correct use, you have 100% certainty of clean and healthy water.

Since our recent upgrade (January 2025), the WiFiPOOL controller works both via cable and WiFi. The basis of this controller is the Gen 2 chipset card, with which you can fully control a pool (see hardware below). The greatest advantage of this innovation is that the automation, whether factory-set or custom-configured, is now also stored in the chip. If the WiFi connection drops, your water treatment simply continues according to the chip parameters.

Optionally, an Ethernet cable connection is available to guarantee connectivity. The greatest advantage however is that the first device configuration is much faster and simpler.
Contact us if you want more information about compatibility and advanced operation since 2025.

The unit is expandable with:

• 3 temperature measurements,
• 3 level measurements,
• a pressure measurement
• a conductivity measurement (salt content measurement).
• Besides pH control and salt electrolysis, 2 other devices can be connected to the control box.

Pairing and configuring the WiFi equipment via the WiFiPOOL app is extremely simple and efficient. The entire automation strategy is automatically loaded into the phone at the moment of installation.(*)

In short: With this device you systematically build a complete domotics system, without extra investment in control equipment.

(*) For installations at the edge of your WiFi range, we strongly recommend performing the pairing with the WiFiPOOL app near your WiFi router. This can perfectly be done before installing the equipment near your pool or spa.

• Thanks to the precise salt electrolysis treatment, your pool contains far fewer irritants and chlorine smell.
• The swimming water is 24/7 in optimal condition and 100% germ-free
• No storage of hazardous chemicals that can accidentally come into contact with young children. Super safe.
• No need for frequent refills as with classic chlorine treatments. The salt content remains virtually constant

With correct use you can 100% rely on pure and healthy water. Moreover, thanks to electrolysis you have much less trouble with irritants and less pool smell.

2026 introduction of the advanced SR salt chlorinator, designed for spas from 5 m³ to pools of 150 m³.
This new development with increased efficiency and durability replaces our old HS salt electrolysis range.

More details about the upgrade here.

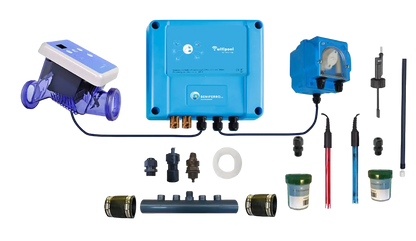

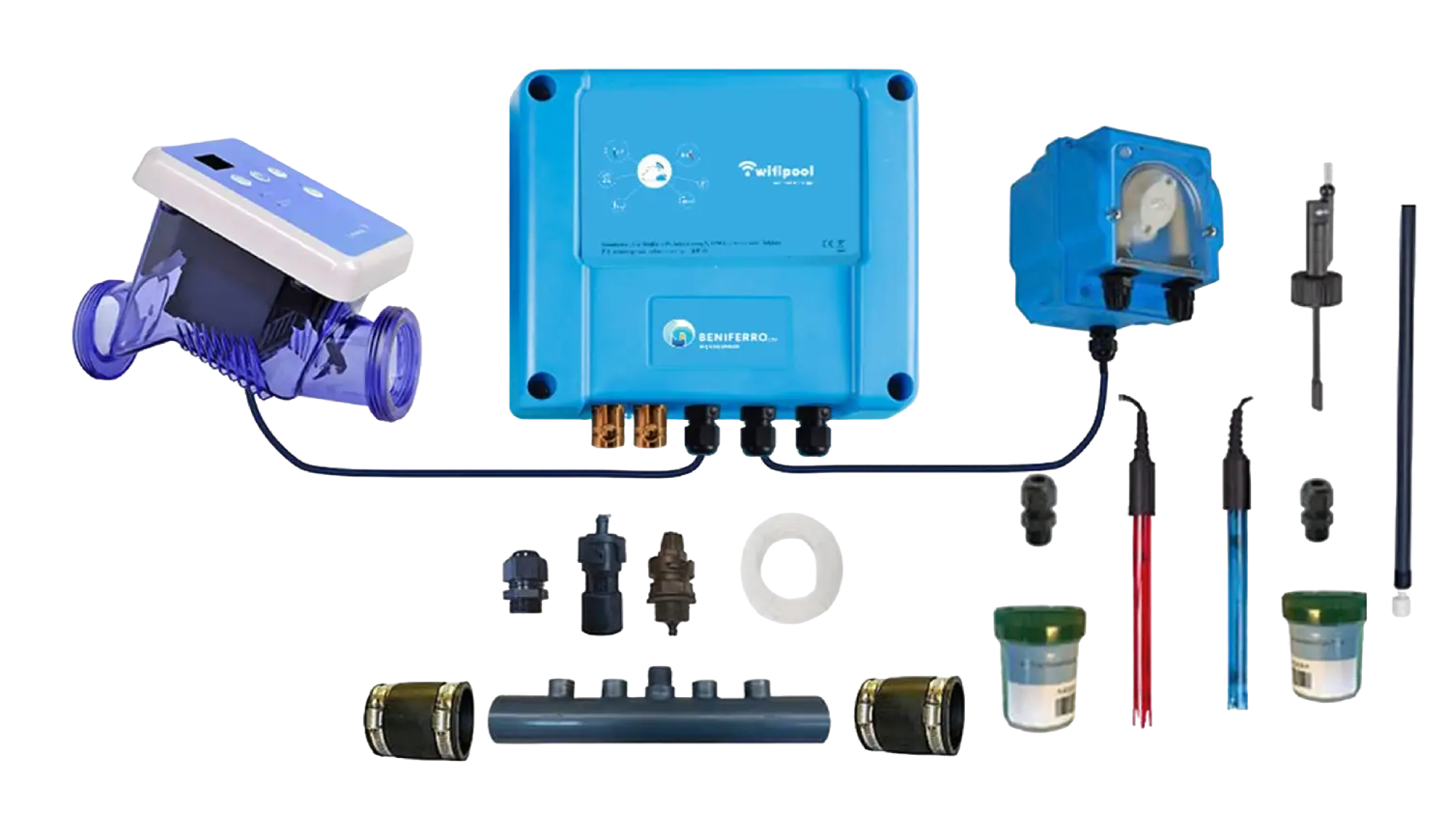

• WiFiPOOL or LCD Display Connect-pro control box
• Salt electrolysis (LASWIM SR Titanium) according to selected capacity

• peristaltic pH pump with all connections
• flow switch
• level detector for acid tank
• earthing
• pH and redox (Chlorine) probes
• calibration fluids
• 2 rubber connections diameter 50mm.
  For connection to 32 or 38 mm Intex | Bestway or 2 inch thread, contact us via chat or at info@pool-automation.co.uk



For purchase of suitable quality salt we refer to the distributors of our main supplier BENIFERRO.EU
