Pre-assembled SR salt electrolyzer with pH, ​​RX, and flow control - pools up to 150m³ - Wi-Fi | Display - Level control optional

The Pool Duo is an automatic water treatment device with salt electrolysis and pH neutraliser, of high quality and at an unbeatable price. To enable electrolysis, you must add 4 g of salt per litre of water. The salt will be converted into chlorine, which – after disinfection – will be converted back into salt

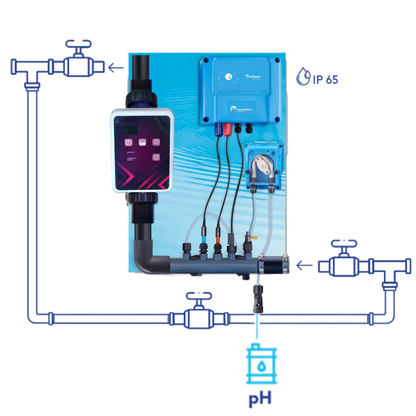

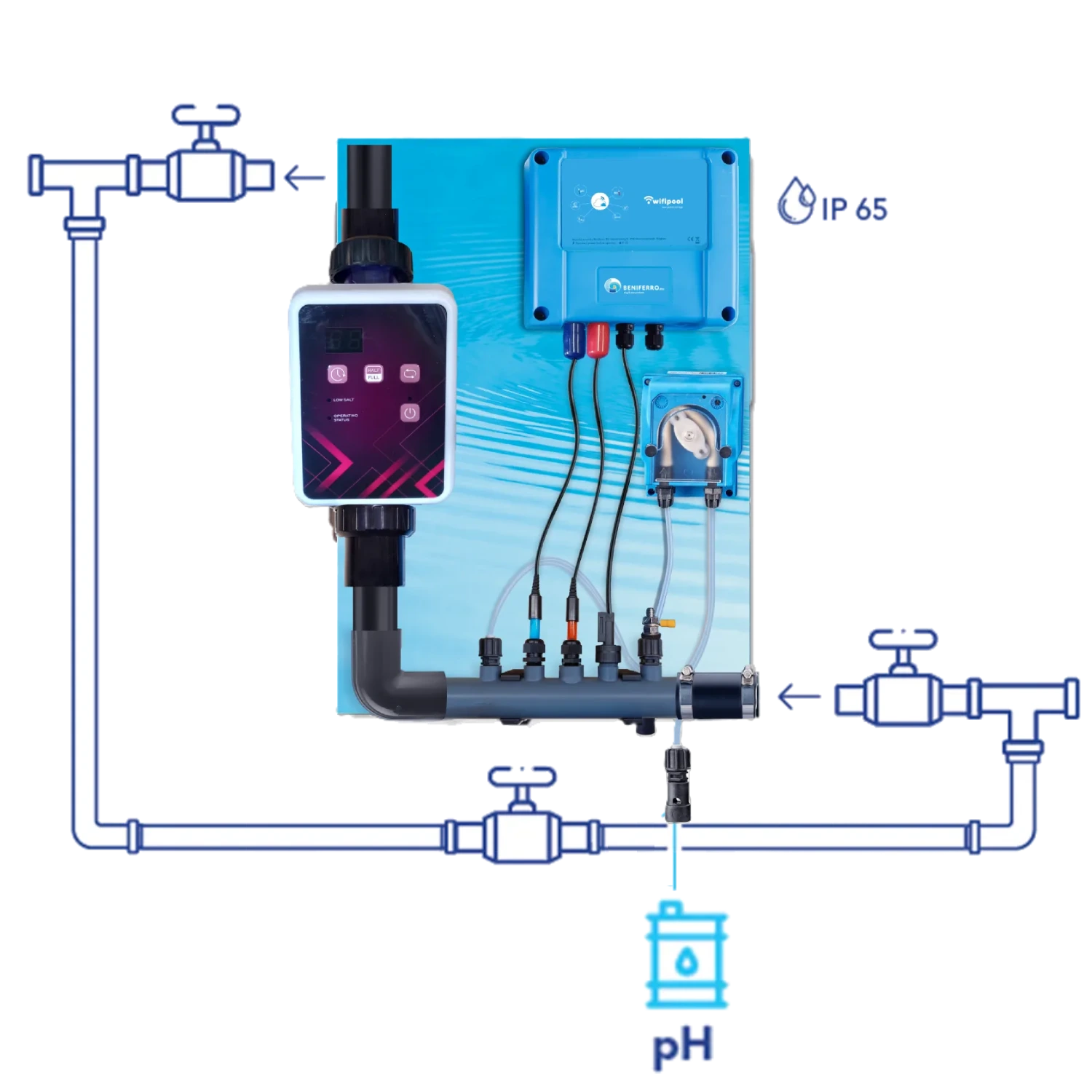

The Pool Duo has been developed for "DIYers" in the pool. Because it is fully pre-assembled and supplied with two rubber ends, it integrates very easily into your existing circulation. Connect the inlet and outlet with rubber couplings to the 50mm pipe (see diagram in product images)
For connection to 32 or 38 mm Intex | Bestway or 2 inch thread, contact us via chat, or at info@pool-automation.co.uk

The menu and calibration, activated by pressing the "calibration" button, are also extremely simple.

There are 5 versions available

• Disinfection with 5 g/h: pools up to 25 m³ *
• Disinfection with 10 g/h: pools up to 50 m³ *
• Disinfection with 15 g/h: pools up to 75 m³ *
• Disinfection with 20 g/h: pools up to 100 m³ *
• Disinfection with 30 g/h: pools up to 150 m³ *

* The definition of m³ for pool usability varies depending on pool usage and installation and lies between 3 and 5 times the disinfection capacity (g/h) of the electrolysis

There are 2 options available

• via our WiFiPOOL controller and corresponding iOS or Android app

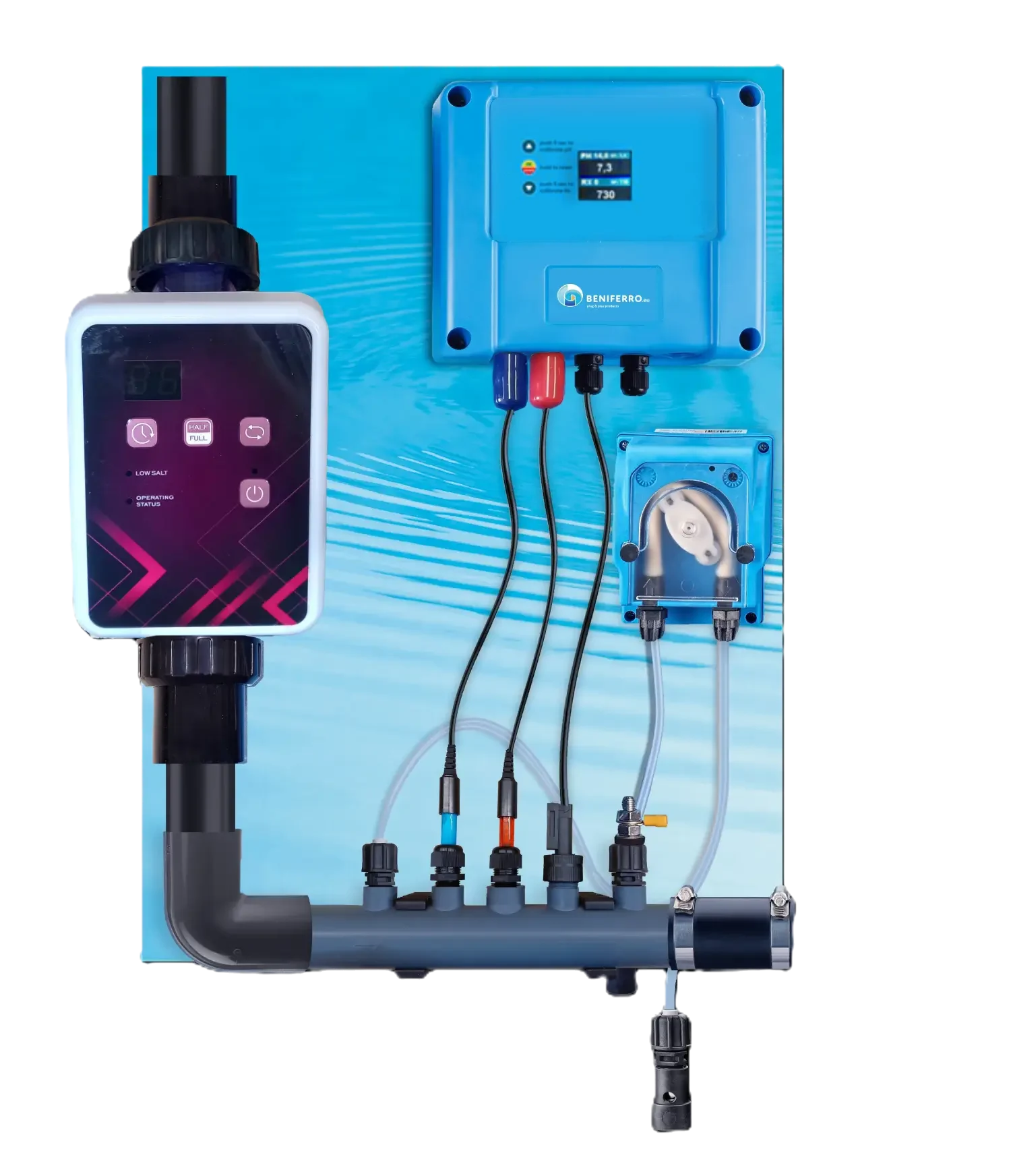

• via an easy-to-use LCD screen, Display version

The Pool Duo comes with a "flow switch" that stops product dosing in the absence of water flow. Level detection stops pH neutraliser dosing when the neutralisation tank is empty.

As soon as water passes through the measurement/dosing nipple, the equipment measures pH and Redox (chlorine) and automatically adjusts pool values. With correct use, you are 100% certain of clear and healthy water.

Since our recent upgrade (January 2025), the WiFiPOOL controller works both via cable and WiFi. The basis of this controller is the Gen 2 chipset board, with which you can fully control a pool (see hardware below). The biggest advantage of this innovation is that the automation, whether factory-set or custom-configured, is now also stored in the chip. If the WiFi connection drops, your water treatment simply continues according to the chip parameters.

Optionally, an Ethernet cable connection is available to guarantee connectivity. The biggest advantage, however, is that the first device configuration is much faster and simpler.
Contact us if you want more information about compatibility and advanced methods since 2025.

Hardware

The basis of this device is the Wifipool Gen 2 circuit board, with which you can fully control a pool. With this board it is always possible to perform the following measurements: pH, RX (chlorine), flow, level (x3), temperature (x3), pressure and conductivity (salt content).

In addition, 4 control devices (frequency converter, peristaltic pumps, salt electrolysis, UV lamp, automatic valve, ...) can be connected. The board has a connection for an internet cable (Ethernet cable), which can be used instead of a wifi signal.

In short: With this device you systematically build a complete domotics system, without extra investment in control equipment.

Software

Connecting and configuring WiFi devices via the WIFIPOOL app is very simple and efficient. The entire automation strategy is automatically installed on the phone at the time of installation.

• Thanks to the meticulous salt electrolysis treatment, your pool contains much less chlorine smell and irritating products. Safe for eyes, skin, hair and swimwear.
• The swimming water is in optimal condition 24/7 and 100% germ-free
• No storage of hazardous chemicals that can accidentally come into contact with young children. Super safe in other words.
• No need for frequent refilling as with classic chlorine treatments. The salt content remains quasi-constant

2026 introduction of the advanced SR salt chlorinator, designed for spas from 5 m³ to pools of 150 m³.
This new development with increased efficiency and durability replaces our old HS salt electrolysis range.

More details about the upgrade here.

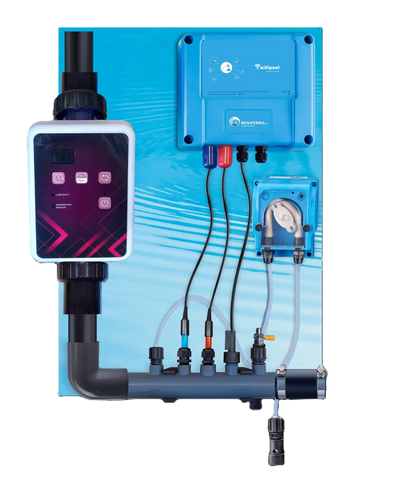

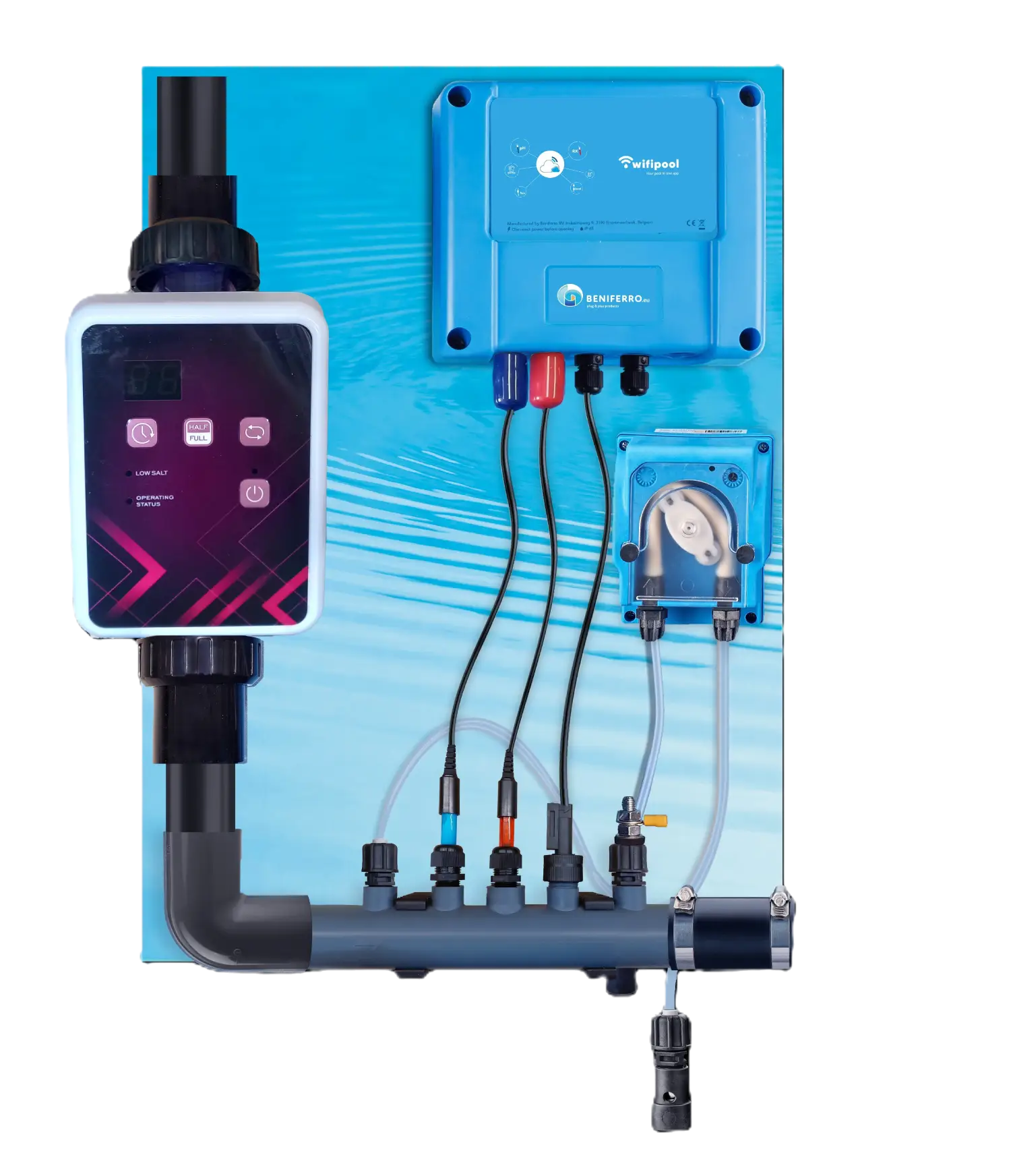

• Pool Duo salt electrolysis (LASWIM SR Titanium) according to chosen capacity and control
• current and level detection,

• peristaltic pump with all connections,
• intelligent Connect PRO box for measurements and control of electrolysis and peristaltic pump,
• flow switch,
• earthing,
• pH and redox (Chlorine) probes and calibration liquids,
• 2 rubber connections diameter 50mm.
  For 32 or 38 mm, contact us

For purchasing suitable quality salt, we gladly refer you to distributors of our main supplier BENIFERRO.EU
